Te Ara Matauranga

A future-focused library for Auckland Grammar School

Redefining a library’s purpose

Located on the northern slopes of Maungawhau (Mount Eden), Auckland Grammar School’s library, Te Ara Matauranga, is a high-performance knowledge destination providing opportunities for collaboration and individual discovery for Years 9 – 13 students. Designed to honour the school’s 2019 sesquicentennial, replacing the original 1965 library provided the opportunity to reframe the facility for the future – creating a multi-functional, energy efficient, low-maintenance building that contributes to the school’s 150-year academic and architectural legacy.

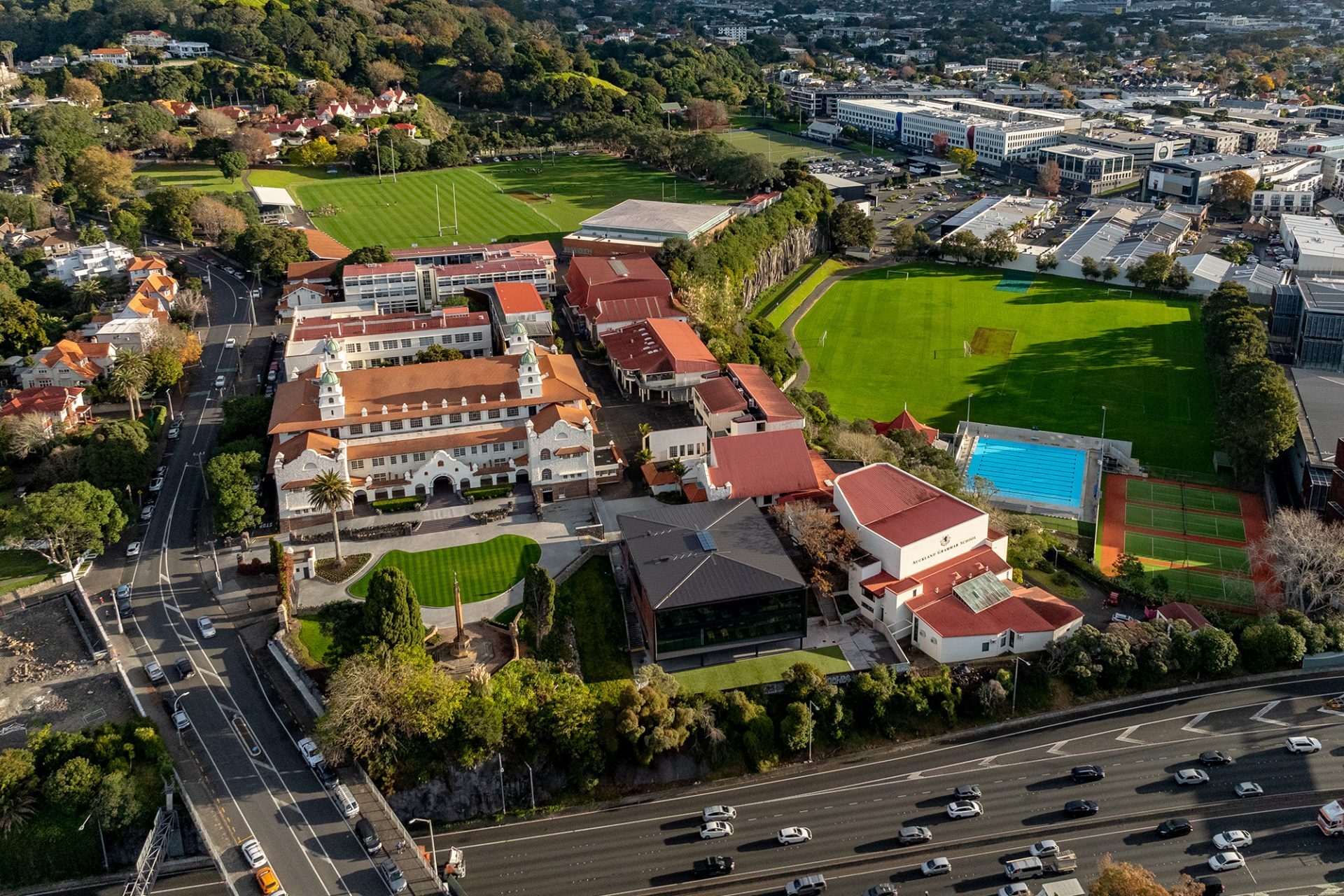

The new site presented both challenge and opportunity. Located on a cliff edge just 20 metres from New Zealand’s busiest road, the Southern Motorway, it offers panoramic views across Auckland City, Rangitoto Island and the Hauraki Gulf, while presenting significant acoustic and air quality challenges. The site is also overlooked by one of the city’s most recognised architectural landmarks, the Auckland Grammar Main School Building (1916). The challenge was to design a building that creates a high-quality indoor environment for study while delivering a landmark addition to the campus that respects its iconic heritage neighbours.

The result is a two-storey building accommodating events and peer-to-peer collaboration alongside individual discovery – bright, airy, well-resourced and multi-functional, with excellent acoustic performance and an innovative low-energy air conditioning system.

Contemporary design in an iconic heritage setting

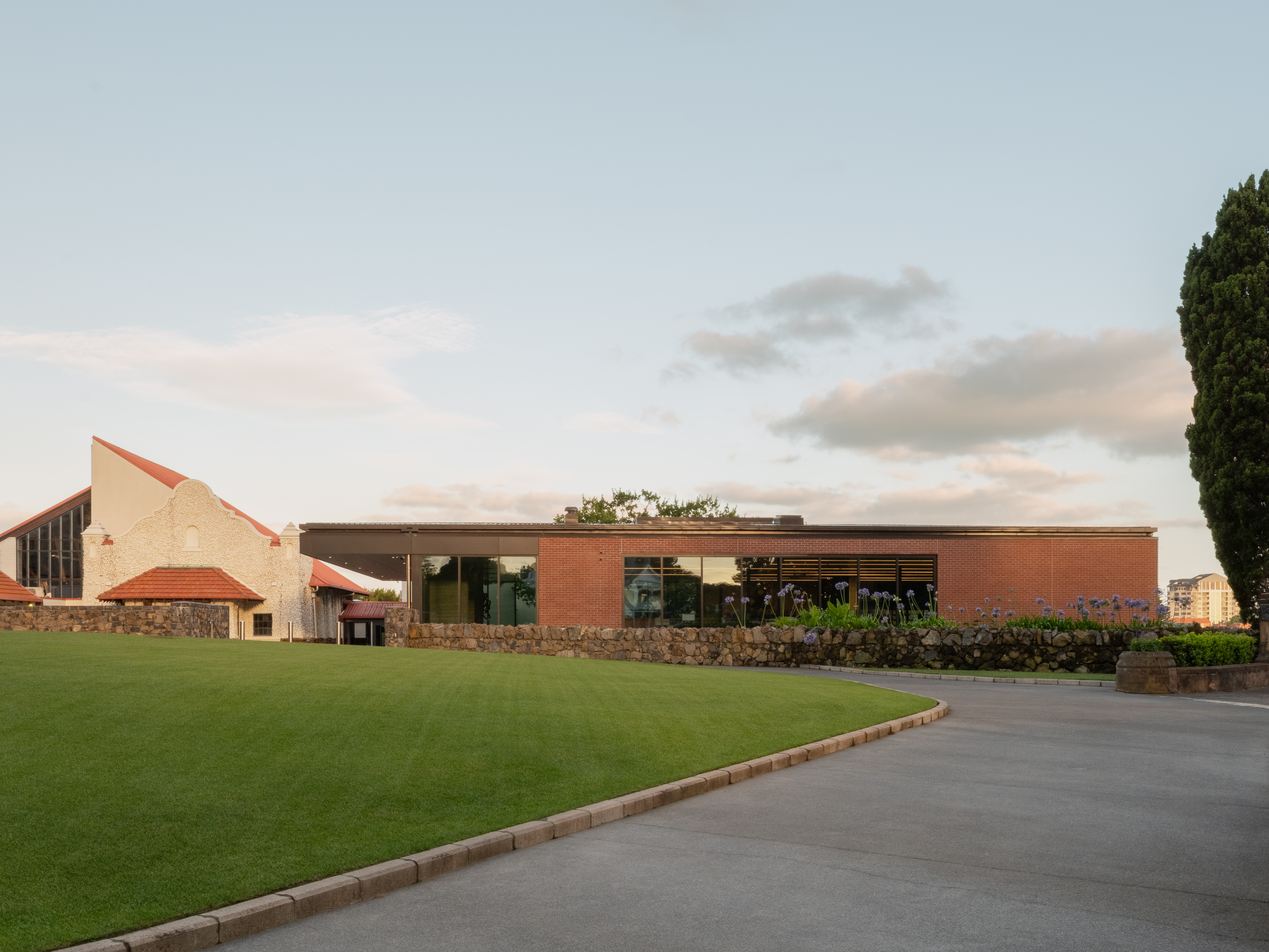

Care was taken to ensure the new structure appears as a single storey when approached from the Main School Building and heritage forecourt. The exterior is clad in red brick, complementing the terracotta roofs of the iconic, mission-style Main School Building and neighbouring original library and centennial theatre (1965).

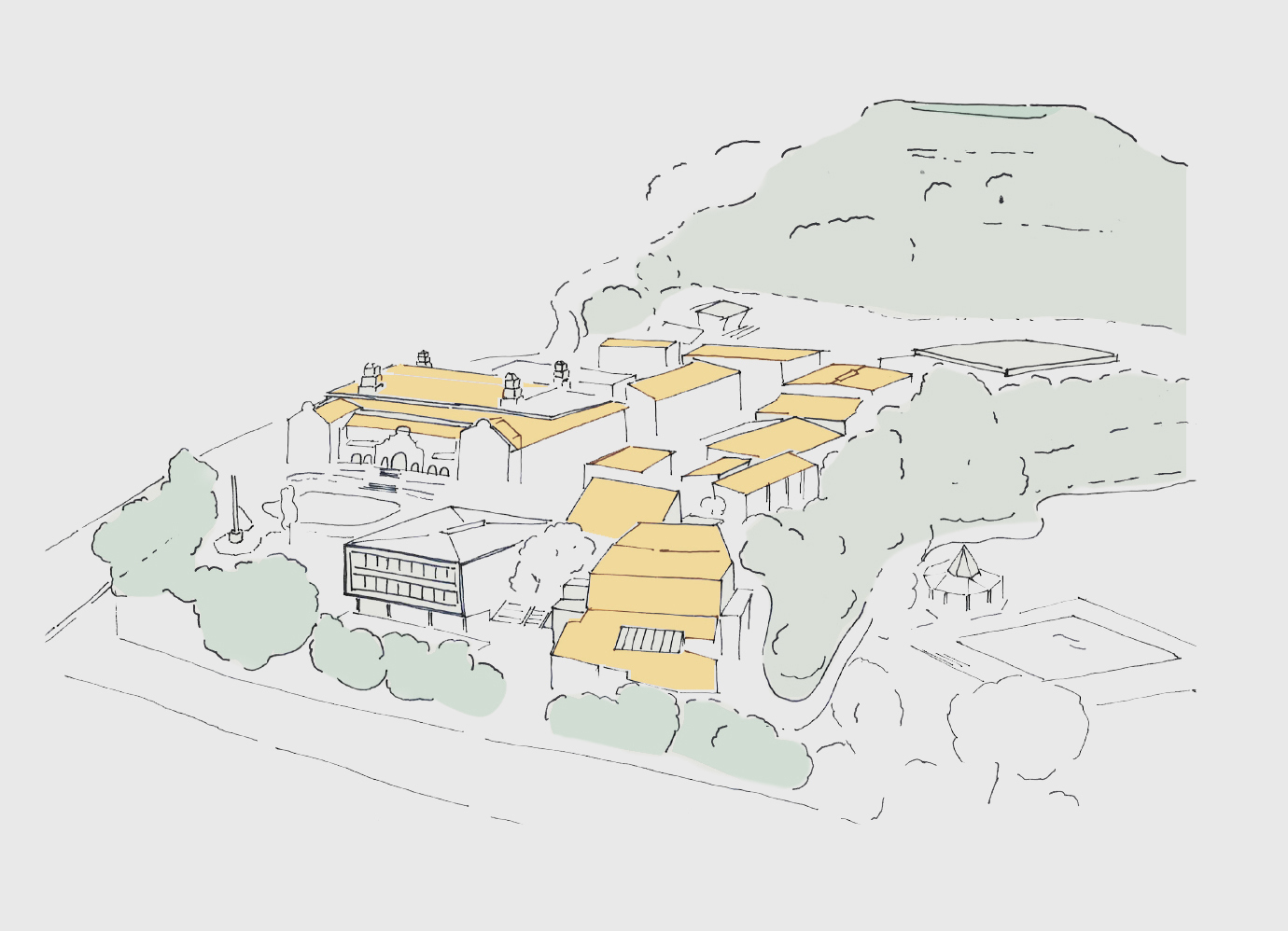

The building levels step down following the contours of Maungawhau, directing students along the primary pedestrian route to the knowledge centre, where each floor terminates in a monumental north-facing viewing window. Dark-toned roofing, metalwork and window joinery are deliberately understated, echoing the basalt upon which the school was founded — a defining feature of the campus gateways and landscape architecture.

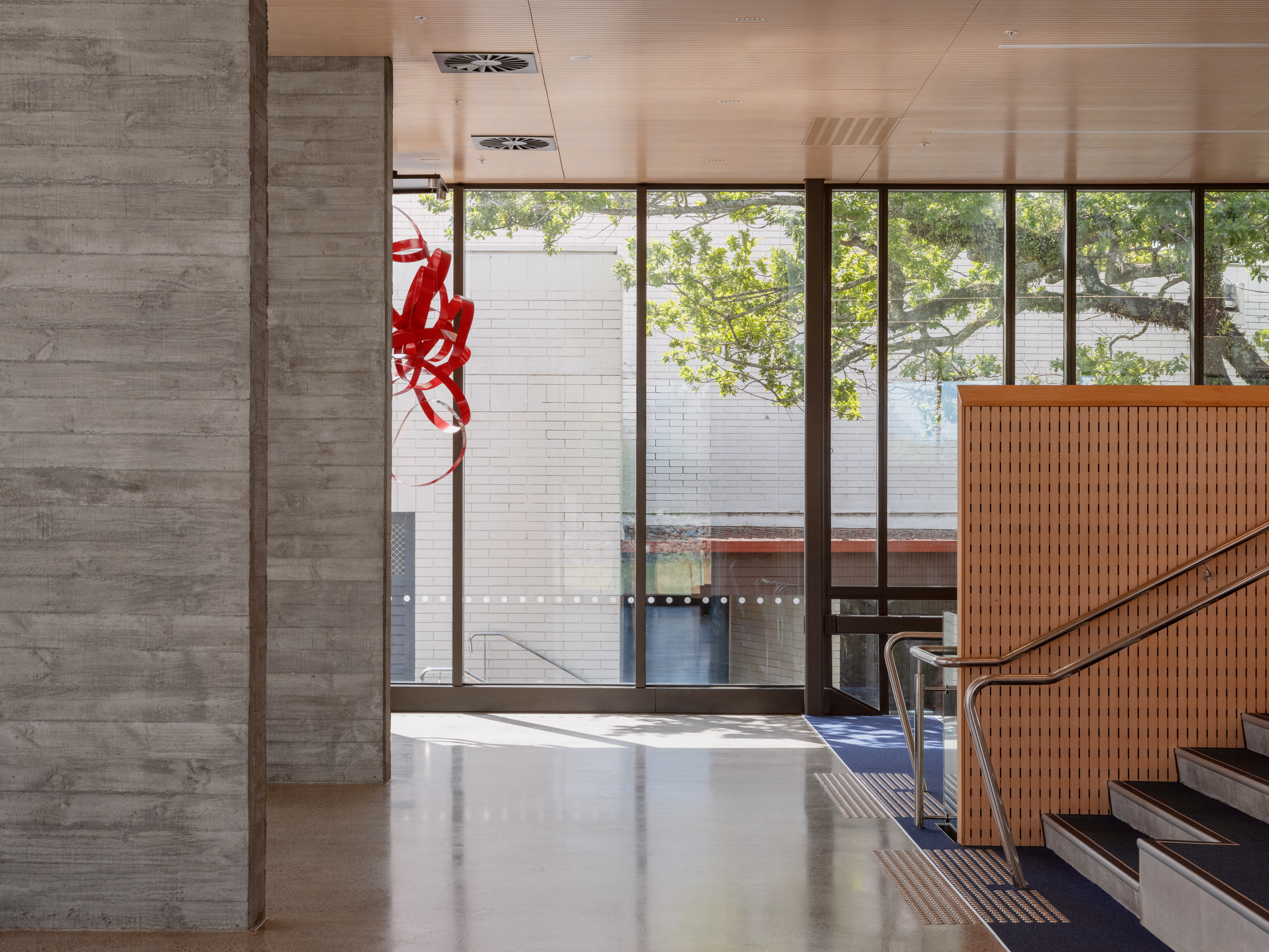

Students are welcomed beneath a cantilevering canopy into an airy lobby extending the full width of the building. A dramatic skylight floods the heart of the space with daylight, augmenting the generous full-height perimeter glazing. The main library floor steps up from the lobby, while a double-height presentation space and cascading stair lead down to the lower library, where classroom spaces, meeting rooms and a senior student lounge are located.

Sustainable solutions keeping running costs low and student outcomes high

Low-energy design was a priority to minimise running costs, but a natural ventilation solution was incompatible with the noise and air pollution present on the site. Instead, the building uses fixed glazing and the most energy-efficient mechanical climate control system available – an enthalpy wheel heat exchange and energy conservation system that aids dehumidification and maintains a high-comfort space while minimising long-term energy costs.

High-quality acoustic design ensures student concentration is uninterrupted by the motorway beyond. Perforated timber ceiling linings conceal acoustic treatment, mechanical ductwork and outlets without the need for obtrusive grilles, while matching acoustic partition walls maintain the functionality of the open-plan environment.

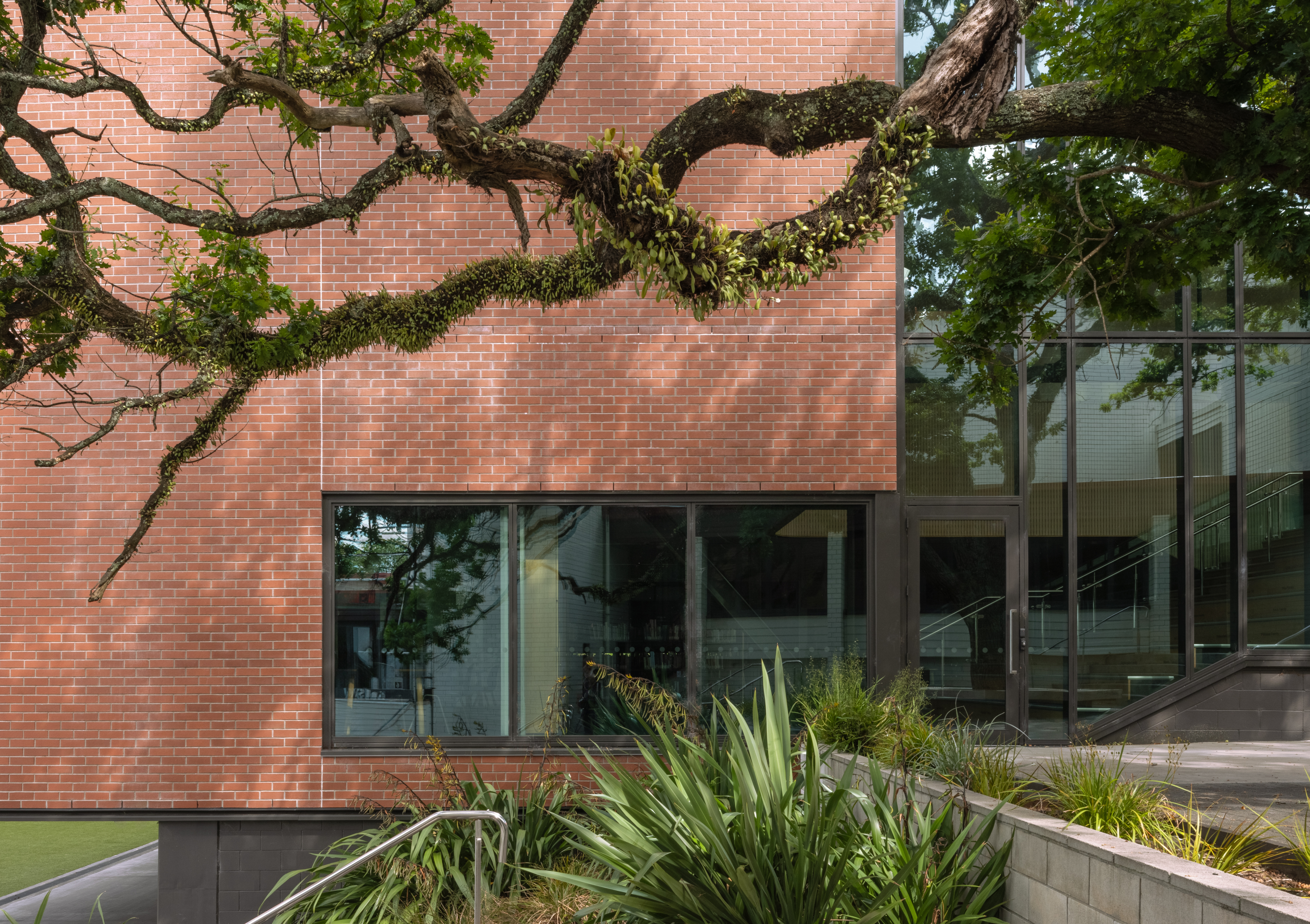

External hard surfaces and landscaping are carefully designed to manage stormwater and prevent flooding to the library, which is located at the bottom of the overland flow path running through the campus. Te Ara Matauranga was positioned to preserve an existing mature oak tree immediately to the west, whose deciduous foliage provides natural summer shading while admitting light and warmth in winter. All basalt removed to create the building platform and foundations was reused within the surrounding landscape works.
